Garros DTG
Direct-to-Garment
Low Running Cost Less Maintenance
The entire machine body uses industrial-grade accessories, saving 60% of technical after-sales problems and increasing the shipment rate.
Project Introduction
Support 650*750 mm large platens, easier to print large patterns.
client
tags
date
Project Introduction

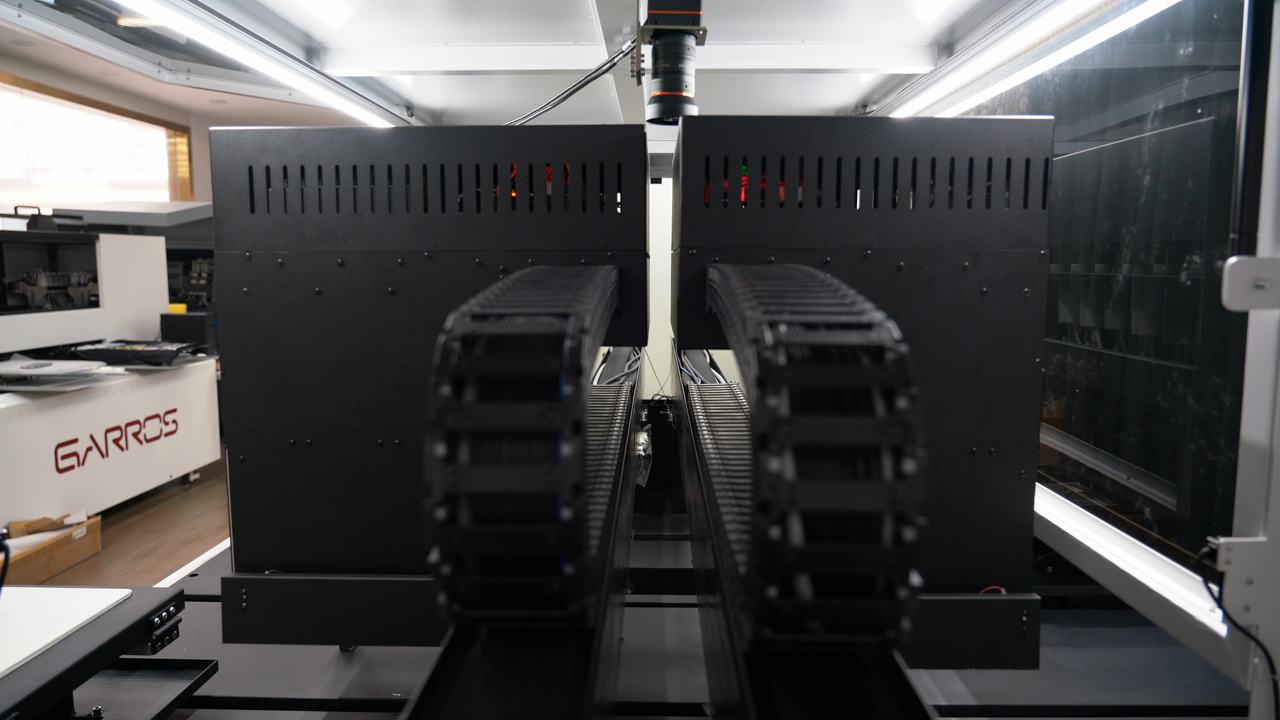

Printing when double head is alternating High-strength steel beam, as stable as Mount Tai.
client
tags
date
Project Introduction
From operator + manual mode to machine + automatic mode. Automatically adjust the printing height according to the fabirc thickness.
client
tags
date
Project Introduction

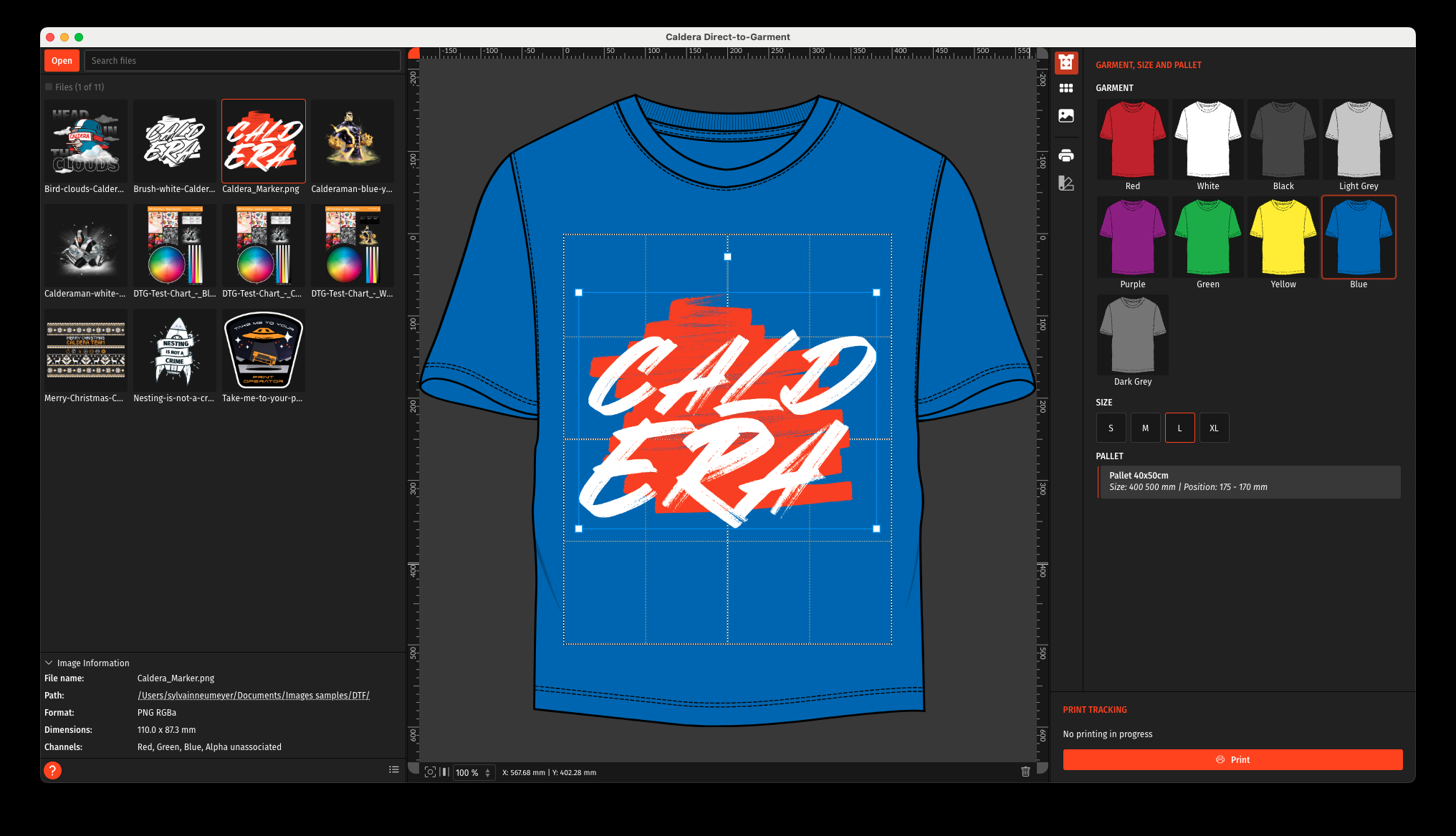

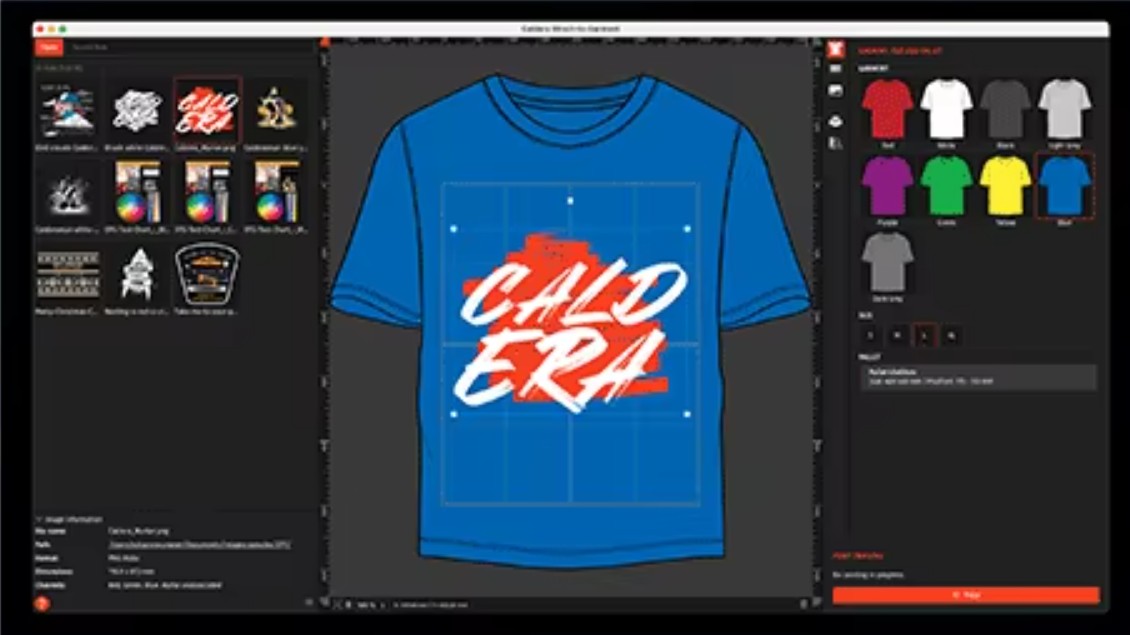

Using French Caldera professional software to Fiery, color RIP are option.
client
tags
date
Project Introduction

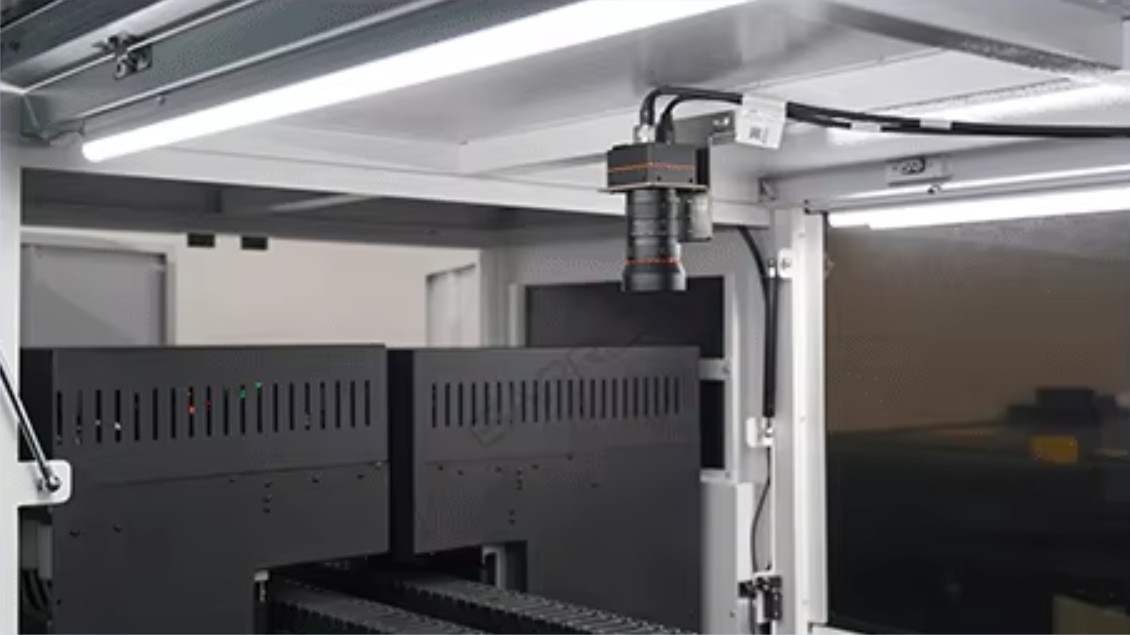

Linear camera scanning positioning printing, easy to handle embroidery type patterns.
client
tags
date

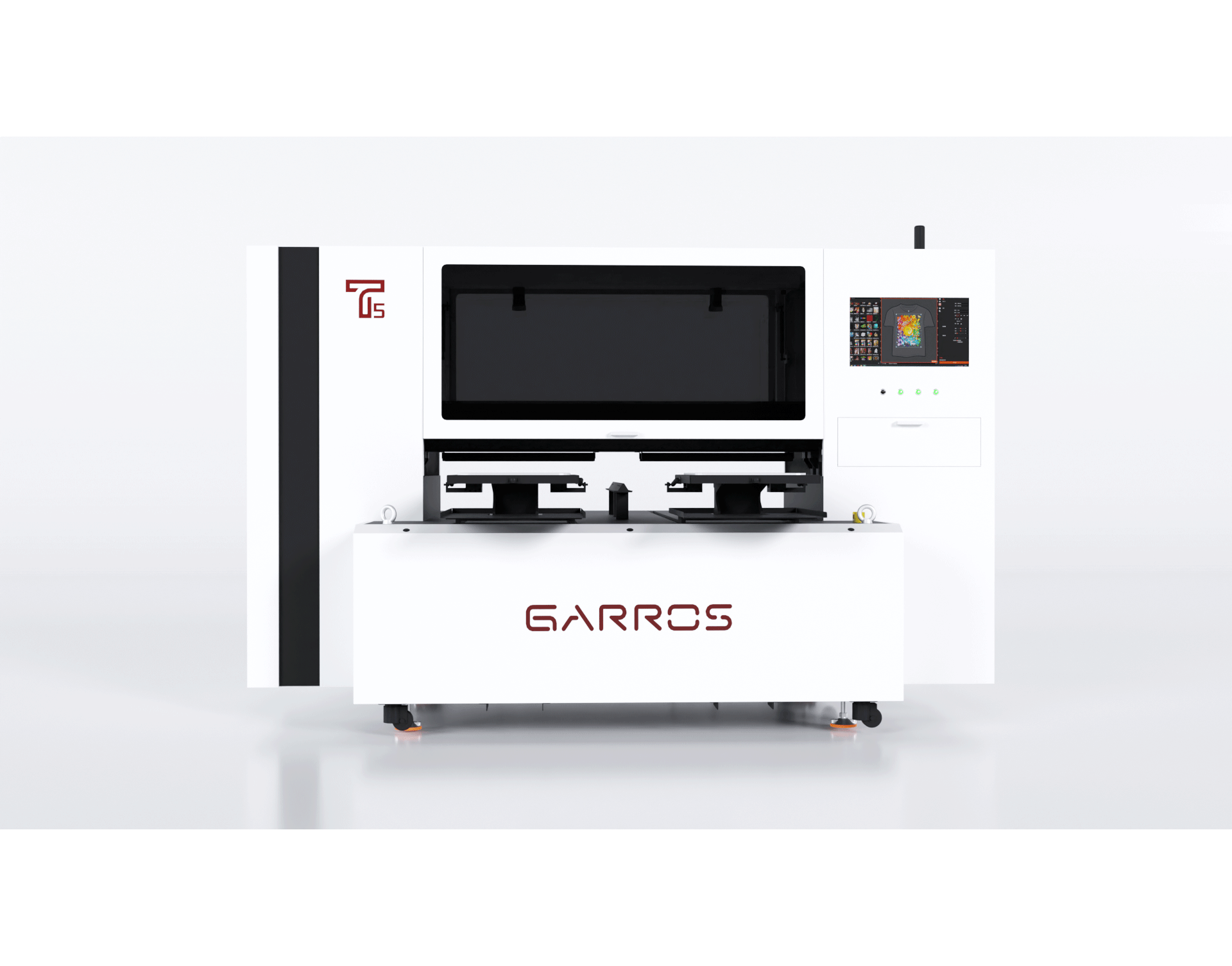

Garros T5 DTG Printer
The Garros T5 DTG Printer offers revolutionary direct-to-garment printing innovation with enhanced efficiency and exceptionally low operational costs.
Product Specifications
| Printing Technology | Pizeo Inkjet Method | |
| Print Head & Quantity | 8 pcs (Max 12 pcs) | |
| Printing Range | 400 x 480 mm | |
| Ink System | Ink Type | Pigment Ink |
| Ink Color | CMYKGRBLK+W | |
| Printing Mode (CMYKGR+W) | Mode | Printing Speed (A4) |
| High Resolution Mode | 100 (pcs) / h | |
| Mode | Printing Speed (A2) | |
| High Resolution Mode | 75 (pcs) / h | |
| Fabric Standard | Plate Size | Max 650 x 750 mm or other custom |
| Fabric Type | cotton, linen, etc | |
| Working Condition | Humidity & Temperature | 55% – 85% (without condensate), 20°C – 30°C |
| Computer Requirements | Operating System | Windows 10 pr Later Version |
| Hardware | CPU: Intel Core i5H / Memory: 8GB / Graphics: Discrete | |
| Interface | 100MB Network Interface | |
| Display | Computer Display | |
| RIP Software | Color, Fiery, Caldera | |
| Language | Chinese/English | |
| Image Format | PNG / JPG / Tiff | |
| Power | AC110/220V, 50Hz/60Hz | |
| Noise | 60dB | |
| Product Size/Weight | 2.800 x 2.100 x 1.960 mm / 1.232 Kg | |
| Packaging Size/Weight | 3.013 x 2.312 x 2.161 mm / 1.520 Kg | |
